On Implementing Projected Gradient Descent to Attack LLMs

Notes on implementing the 2025 paper, "Attacking Large Language Models with Projected Gradient Descent"

Introduction

This post delves into the paper, Attacking LLMs with Projected Gradient Descent, my experience implementing its methodology in PyTorch, and subsequent explorations.

All references to methodology are drawn from the paper unless otherwise noted.

The paper highlights that if the rate of adoption and application of LLMs outpaces efforts towards ensuring their alignment and safety, their vulnerabilities will manifest with harmful repercussions.

The 2025 paper by Geisler et al. highlights a specific form of attack applicable to open-weight large language models. An ill-intentioned user input \(I\) by itself is insufficient to prompt an LLM to generate harmful content \(C\), typically eliciting a safety response:

I'm a helpful assistant and cannot assist with that request...

However, by appending a tuned ‘adversarial’ prefix and/or suffix \(P\), \(S\) to the input, forming \(P \circ I \circ S\), the LLM can be manipulated into producing the undesired content \(C\).

\[P(C | P \circ I \circ S) >> P(C | I)\]

Note: \(\circ\) above is the concatenation operator.

Background

The attack draws inspiration from adding noise as adversarial perturbations to images in computer vision tasks, resulting in misclassifications. However, unlike images where pixel values are continuous, text inputs to LLMs are discrete, integral indices drawn from a vocabulary, making direct gradient-based perturbations infeasible.

So given an open-weight LLM, a malicious user prompt \(U\), and a target prefix \(T\) representative of a continuation of malicious content, the task is to find an adversarial suffix X that when attached to the user prompt, “jailbreaks” the LLM into generating the target T.

*Note that both prefix and/or suffix can be used.

Mathematically,

\[\arg\max_{X} P(LLM(U \circ X) = T || T')\]

Here, the optimization occurs against ground truth target \(T\). Empirically, steering towards generation of \(T\), is often sufficient for the LLM to continue producing harmful content \(T'\). We want to learn a suffix \(X\), when appended to \(U\), that maximizes the likelihood of generating \(T\).

Approach

The likelihood of generating \(T\) given \(U \circ X\) can be expressed as: \(P(LLM(U \circ X) = T) = \prod_{i=1}^{|T|} P_{LLM}(t_i | U \circ X \circ t_{<i})\)

For numerical stability, the log-likelihood is maximized (as the logarithm function is monotonically increasing): \(\arg\max_{X} \sum_{i=1}^{|T|} \log P_{LLM}(t_i | U \circ X \circ t_{<i})\)

This is equivalent to minimizing the negative log-likelihood (NLL): \(\arg\min_{X} - \sum_{i=1}^{|T|} \log P_{LLM}(t_i | U \circ X \circ t_{<i})\)

Which is synonymous with minimizing the cross-entropy loss between the predicted token distribution and the target tokens expressed as one-hot encodings over the model’s vocabulary.

Relaxation

The adversarial tokens we wish to learn can be expressed as a sequence of \(L\) tokens, each a 1-hot vector of dimensionality \(|V|\), where \(V\) is the model vocabulary. Thus, \(X\) defined as \(X \in \{0,1\}^{L \times |V|}\) represents the discrete token sequence we wish to learn.

In its discrete form, this combinatorial optimization problem is computationally intractable with complexity \(O(|V|^L)\). A relaxation is applied on the ‘hard’ token representations, \(X \in \{0,1\}^{L \times \vert V \vert}\), to ‘soft’ representations, \(X \in [0,1]^{L \times \vert V \vert}\), with \(\forall i, \sum_{j=1}^{\vert V \vert} X_{i,j} = 1\).

Each row of \(X\) can be interpreted as a categorical distribution over the model’s vocabulary. This makes the loss function differentiable with respect to \(X\), allowing us to apply gradient descent.

Each row of \(X\) belongs to the probability simplex in \(\mathbb{R}^{\vert V \vert}\), which is the set of all vectors \(x \in \mathbb{R}^{\vert V \vert}\) with \(x_i \in [0,1]\) and \(\sum x_i = 1\) (matching our definition of soft token representation above).

To map back to discrete, token space, \(t_i = \arg\max_j X_{i,j}\) (greedy decoding).

Simplex Projection

After each gradient descent step, the updated \(X\) may no longer satisfy the simplex constraints, i.e., be a probability vector. To enforce this, \(X\) is row-wise projected onto the probability simplex using the algorithm from Efficient Projections onto the l1-Ball for Learning in High Dimensions by Duchi et al. .

The projection is defined as finding a probability vector \(x_p\) such that \(x_p = \arg\min_{x \in \Delta} \vert \vert x - x_{t+1} \vert \vert\)

A natural question here is the choice of simplex projection over naive normalization or softmax. Two interpretations that intuitively to support this:

  1. Preserves descent step: simplex projection is defined to find the closest point on the simplex to the updated \(x_{t+1}\) by Euclidean distance. This is the point on the simplex maximally preserving the direction of the gradient update.
  2. Preserves sparsity as the adjustment to \(x_{t+1}\) is a translation, as opposed to softmax which reduces sparsity (Hint: \(\forall x,e^x > 0\), with \(e^0 = 1\)). As the end goal is to find discrete tokens, preserving sparsity results in faster convergence.

Entropy Projection

Lastly, an additional projection is conditionally applied to enforce a target Tsallis Entropy with \(q=2\) on the rows of \(X\). This is done if the entropy difference between the current token distribution and the representative uniform distribution is sufficiently small.

The Tsallis entropy for a probability vector \(p\) simplifies to \(H_2(p) = 1 - \sum_i p_i^2\) which is related to the norm. For a uniform distribution, this is maximum at 1 and for a one-hot vector (a case of a shifted delta distribution), is minimum at 0, matching the interpretation of entropy as a measure of uncertainty.

However, we should note that the definition can be used to solve for a contradictory case of a distribution with value \(\frac{1}{\sqrt{n}}\) everywhere, evaluating to an entropy of 0 yet being uniform.

Implementation

The attack is implemented in PyTorch using the HF transformers library.

class PGD:
    def __init__(self, model_name: str, device: str = "cuda"):
        self.tokenizer = AutoTokenizer.from_pretrained(model_name)
        self.model = AutoModelForCausalLM.from_pretrained(model_name).to(device)
        self.learning_rate = 0.325

        if self.tokenizer.pad_token is None:
            self.tokenizer.pad_token = self.tokenizer.eos_token

        """
        Freeze all model parameters, we only want to learn the adversarial suffix
        """
        for param in self.model.parameters():
            param.requires_grad = False

        """
        Embedding matrix for soft token projection
        """
        self.embedding = self.model.get_input_embeddings()
        self.V, _ = self.embedding.weight.shape

Some choices of relaxed adversarial tokens are:

  1. Sample from a normal distribution with temperature-scaled softmax normalization
  2. Sample from user prompt with additive noise

Creating our learnable adversarial matrix for (1):

# class PGD:
def initialize_prompt_from_normal(
    self,
    user_prompt: str,
    num_prefix_tokens: int = 20,
    num_suffix_tokens: int = 20,
    temperature: float = 0.6) -> torch.Tensor:

    self.num_prefix = num_prefix_tokens
    self.num_suffix = num_suffix_tokens

    user_prompt_token_ids = self.tokenizer.encode(user_prompt, return_tensors="pt", add_special_tokens=False).to(self.device)
    self.user_prompt_tokens = F.one_hot(user_prompt_token_ids, num_classes=self.V).float().to(self.device)

    prefix_relaxed = torch.randn((1, num_prefix_tokens, self.V), device=self.device)
    prefix_relaxed = F.softmax(prefix_relaxed / temperature, dim=-1)
    suffix_relaxed = torch.randn((1, num_suffix_tokens, self.V), device=self.device)
    suffix_relaxed = F.softmax(suffix_relaxed / temperature, dim=-1)

    adversarial_tokens = torch.cat([prefix_relaxed, self.user_prompt_tokens.float(), suffix_relaxed], dim=1)

    adversarial_tokens = torch.nn.Parameter(adversarial_tokens, requires_grad=True)
    self.model.register_parameter("adversarial_tokens", adversarial_tokens)

    return adversarial_tokens

As the learnable matrix contains both the user prompt and the suffix, a helpful utility to keep the user part of the matrix fixed during optimization,

class Util:
    @staticmethod
    def overlay(x: torch.Tensor, prefix_len: int, suffix_len: int, new: torch.Tensor) -> torch.Tensor:
        # copy new tensor data only to prefix and suffix tokens
        result = x.clone()
        result[:, :prefix_len, :] = new[:, :prefix_len, :]
        result[:, -suffix_len:, :] = new[:, -suffix_len:, :]
        return result

Now, the simplex algorithm can be defined as:

class Math:
    @staticmethod
    def simplex_projection(x: torch.Tensor, device) -> torch.Tensor:
        # x = (B, seq_len, vocab_size)
        size = x.size()[-1]
        sorted_tokens, _ = torch.sort(x, descending=True, dim=-1)
        prefix_sum = torch.cumsum(sorted_tokens, dim=-1)
        range_tensor = torch.arange(1, size + 1, device=device)
        prefix_averages = (prefix_sum - 1) / range_tensor.float()
        indicators = (sorted_tokens - prefix_averages) > 0
        rho = torch.sum(indicators, dim=-1).unsqueeze(-1)
        delta = (prefix_sum.gather(-1, rho - 1) - 1) / rho.float()
        return F.relu(x - delta)

applied using,

# class PGD:
def simplex_projection(self, x: torch.Tensor) -> torch.Tensor:
    projection = Math.simplex_projection(x, self.device)
    return Util.overlay(x, self.num_prefix, self.num_suffix, projection)

It is initially un-intuitive how this corresponds to the aforementioned geometric definition. The short paper Simplex Projection derives the algorithm analytically for the equivalent quadratic program using KKT conditions. The quadratic form expresses minimizing Euclidean distance to the simplex.

Similarly, entropy projection is implemented as:

# class Math:
@staticmethod
def entropy_project(x: torch.Tensor, target_entropy: float, device) -> torch.Tensor:
    # x shape: (batch_size, seq_len, vocab_size)
    indicator = (x > 0).float()
    num_positive = indicator.sum(dim=-1, keepdim=True)
    center = indicator / num_positive

    radius_sq = 1.0 - target_entropy - (1.0 / num_positive)
    radius = torch.sqrt(torch.clamp(radius_sq, min=0.0))

    diff = x - center
    dist = torch.norm(diff, p=2, dim=-1, keepdim=True)

    mask = (radius >= dist).float()
    scale = radius / torch.clamp(dist, min=1e-12)
    projection = scale * diff + center
    projection = Math.simplex_projection(projection, device)

    return mask * x + (1 - mask) * projection

# class PGD:
def entropy_projection(self, x: torch.Tensor, target_entropy: float) -> torch.Tensor:
    # Project to entropy constraint
    projection = Math.entropy_project(x, target_entropy, self.device)
    return Util.overlay(x, self.num_prefix, self.num_suffix, projection)

Computing the losses is done by making use of the in-built cross-entropy loss function in transformers:

# class PGD:
def compute_loss(
        self, adversarial_tokens: torch.Tensor, target_text: str
    ) -> torch.Tensor:
    # Compute negative log likelihood loss for target text
    embeddings = torch.matmul(adversarial_tokens, self.embedding.weight)
    target_ids = self.tokenizer.encode(target_text, return_tensors="pt", add_special_tokens=False).to(self.device)
    with torch.no_grad():
        target_embeddings = self.embedding(target_ids)

    # shape (B, seq_len, D)
    inputs_embeds = torch.cat([embeddings, target_embeddings], dim=1)

    # prepend labels with -100 to ignore loss on prompt tokens; 1 is the sequence dimension
    pad_length = inputs_embeds.size(1) - target_ids.size(1)
    padded_target_ids = F.pad(target_ids, (pad_length, 0), value=IGNORE_LOSS_ID)

    outputs = self.model(inputs_embeds=inputs_embeds, labels=padded_target_ids)
    return outputs.loss

def compute_hard_loss(
    self, adversarial_tokens: torch.Tensor, target_text: str
) -> float:
    with torch.no_grad():
        discretized_tokens = adversarial_tokens.argmax(dim=-1)
        ids = self.tokenizer.encode(self.tokenizer.decode(discretized_tokens.squeeze(0)), return_tensors="pt", add_special_tokens=False).to(self.device)
        one_hot_tokens = F.one_hot(ids, num_classes=self.V).float()
        return self.compute_loss(one_hot_tokens, target_text).item()

Note, the loss computation above implicitly uses teacher forcing, where ground truth target tokens are used instead the model’s own output in the auto-regressive decoding phase.

In the optimization loop, gradients are masked to only be applied to the non-user prompt portion of the adversarial matrix along with the relevant projections. Both of these are done in a context manager to avoid these computations being tracked by the autograd engine.


    ...

    loss = self.compute_loss(adversarial_tokens, target)
    loss.backward()

    with torch.no_grad():
        gradients = Util.overlay(torch.zeros_like(adversarial_tokens.grad), self.num_prefix, self.num_suffix, adversarial_tokens.grad)
        clipped_gradients = self.clip_norm(gradients, max_norm=20.0)
        adversarial_tokens.grad.copy_(clipped_gradients)

    optimizer.step()
    scheduler.step()

    learning_rate = scheduler.get_last_lr()[0]

    with torch.no_grad():
        hard_loss = self.compute_hard_loss(adversarial_tokens, target)
        projected = self.simplex_projection(adversarial_tokens)
        target_entropy = self.compute_target_entropy(learning_rate, loss.item(), hard_loss)
        projected = self.entropy_projection(projected, target_entropy)
        adversarial_tokens.copy_(projected)

    ...

Experiments

Some key things to ensure for stable training and convergence:

  1. alignment between soft and hard token loss
  2. preventing learning degenerate solutions and mode collapse
While the soft token loss (green) is noisy, it trends downwards centered around the hard token loss, indicating alignment.

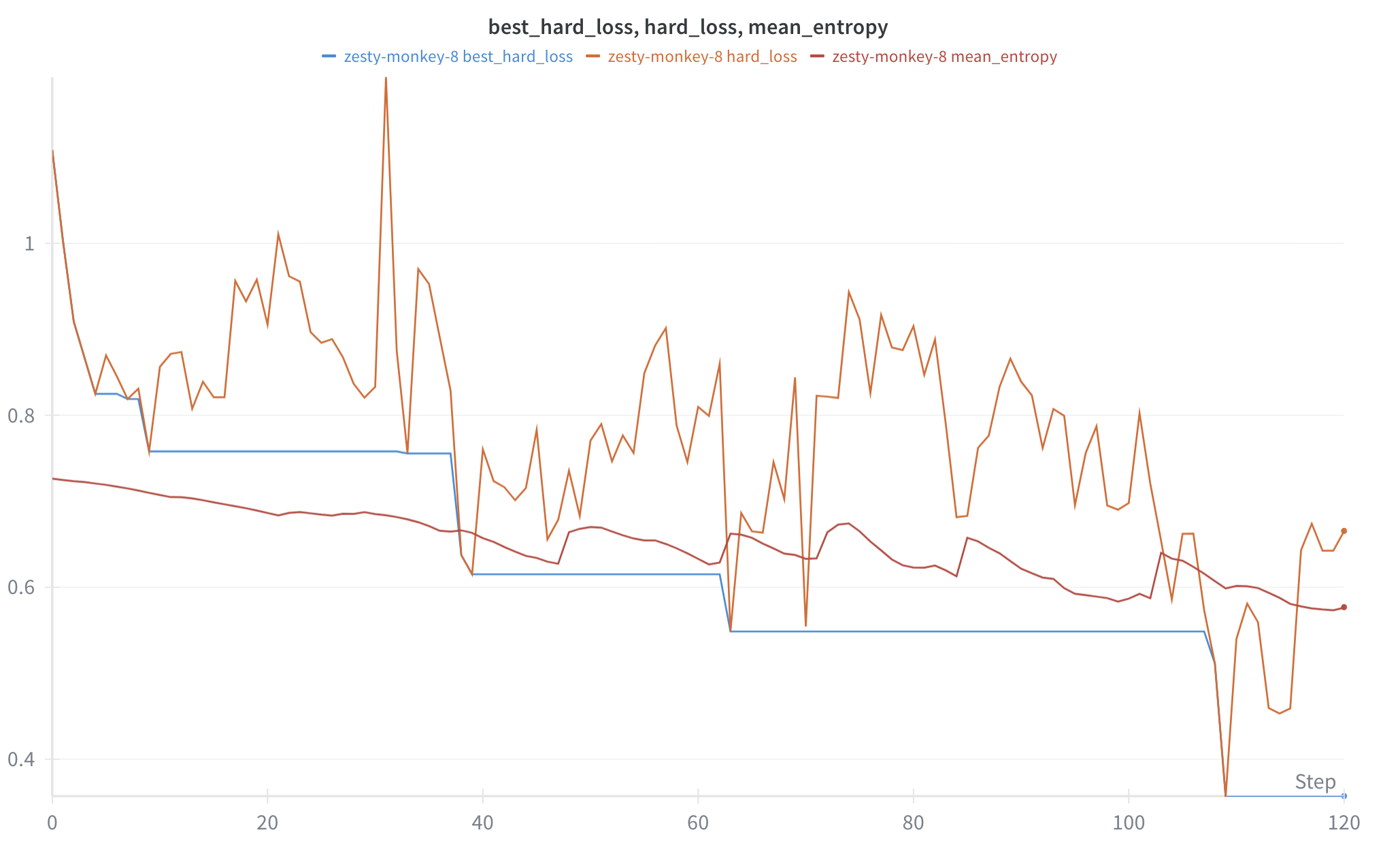

Zooming in, the mean entropy (red) trends downwards as we converge to sparser, discrete solutions. The hard token loss (orange) decreases step-wise after many iterations of search, as indicated by the best hard token loss so far (blue).

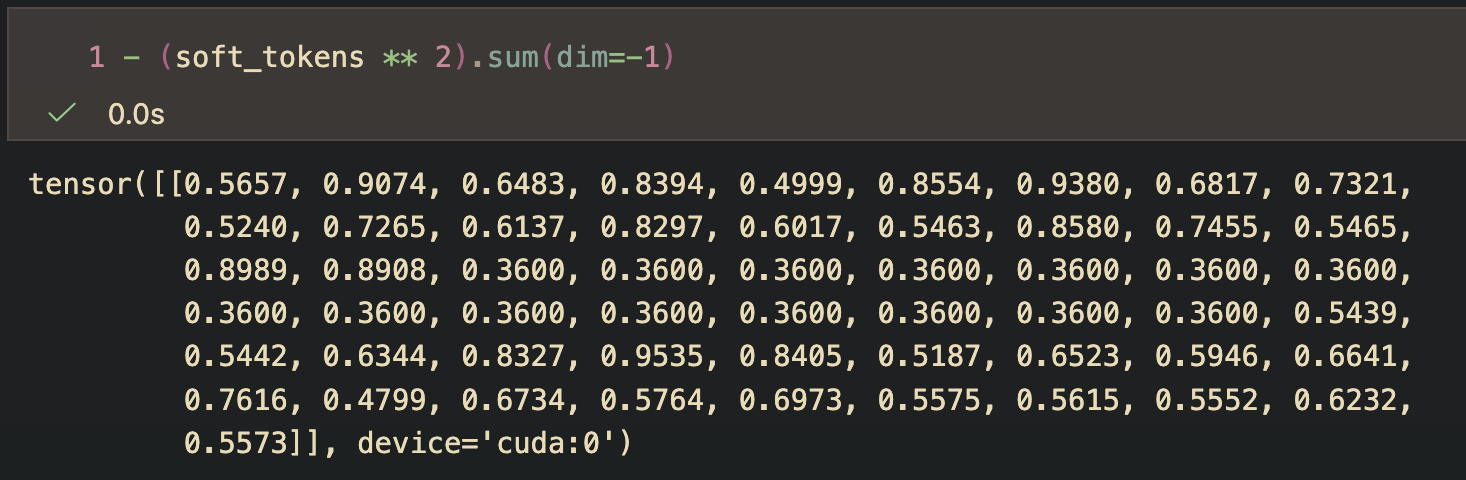

The final token entropies of the learned tokens are low, suggesting convergence to discrete predictions:

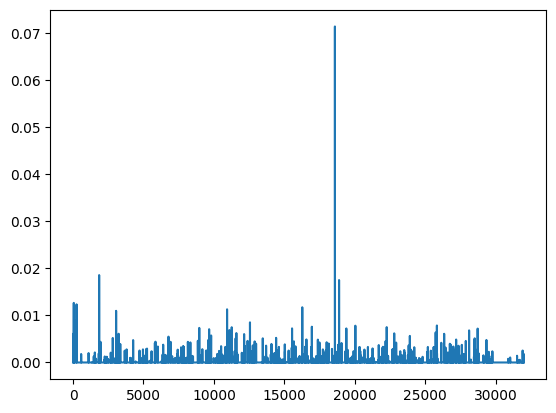

An example adversarial token's learned distribution over the vocabulary.

Next

*TODO: I am actively exploring methods in alignment to increase resilience and will update this section.

Conclusion

Optimizing the relaxed objective purely without alignment to discretized token, i.e., finding adversarial embeddings is trivial in comparison to finding discrete solutions, i.e., adversarial tokens. However, discrete adversarial tokens exist and are effective in steering open-weight models such as Vicuna-7B and Gemma-2B into generating harmful content.
